Advanced Pinnacle Series Shaker Screens for Dual Pool Systems
Maximize your solids control efficiency with our high-conductance replacement screens. Designed for rigorous drilling environments, ensuring optimal fluid recovery and precise cut points.
What makes the Pinnacle Series Screen essential for drilling?

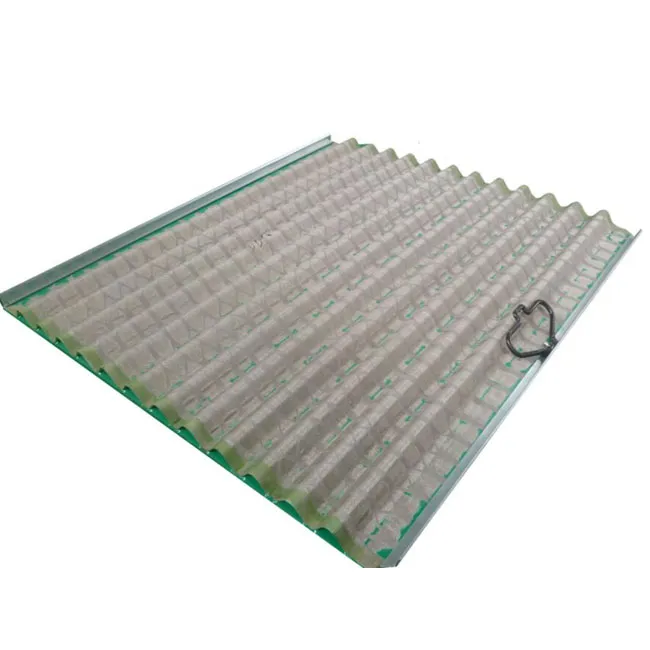

The Pinnacle Series Shaker Screen is a specialized filtration component engineered for high-capacity Dual Pool shale shakers. Unlike standard screens, the Pinnacle design utilizes a unique mesh layering technology that increases the non-blanked area, thereby enhancing conductance. This results in superior separation of drill cuttings from drilling fluids, strictly adhering to API RP 13C testing standards. For operators, this translates to drier cuttings and reduced mud costs.
Operational Performance
Visual demonstration of screen durability and vibration resistance.
Technical Specifications
| Compliance Standard | API RP 13C (ISO 13501) |
| Mesh Material | Stainless Steel 304 / 316 |
| API Range | API 20 - API 325 |
| Screen Type | Pre-tensioned / Composite Frame |
| Temperature Limit | Up to 120°C (248°F) |
Key Advantages:
- High Conductance: Optimized wire diameter for faster fluid flow.
- Precision Cut Point: Accurate separation of harmful solids.
- Enhanced Durability: Resists tearing and premature wear.
Industry Feedback
"The filtration accuracy of these Pinnacle replacement screens matches the OEM specs perfectly. We saw a significant improvement in fluid recovery rates on our offshore rig."
"Consistent quality and excellent packaging. We import these for our rental fleet, and the durability has reduced our monthly consumable costs by about 15%."
"Finding reliable screens compatible with the Dual Pool system was challenging. These fit perfectly and the rubber sealing is top-notch."
Frequently Asked Questions
Are these screens compliant with API RP 13C standards?
Yes, our Pinnacle Series screens are fully tested and compliant with API RP 13C standards, ensuring accurate cut points and reliable non-blanked area data for precise solids control.
What is the typical service life compared to standard screens?
Due to the advanced multi-layer stainless steel wire mesh structure, Pinnacle screens typically offer 20-30% longer service life under standard drilling conditions, reducing downtime for replacement.
Can these screens handle high-viscosity drilling fluids?
Absolutely. The high conductance design ensures maximum fluid throughput, making them ideal for handling high-viscosity muds in complex drilling environments.
What mesh sizes are available for wholesale orders?
We supply a full range of API numbers from API 20 to API 325 to suit various drilling phases, from top-hole fast drilling to reservoir section fine screening.
How are the screens packaged for international shipping?
Screens are packed in high-strength cartons and secured in wooden crates or on pallets, designed to withstand long-distance sea freight and rough handling at the rig site.
Do you provide mounting accessories for Dual Pool shakers?
Yes, in addition to screens, we offer compatible rubber mounting components to ensure a perfect seal and optimal vibration transmission.
