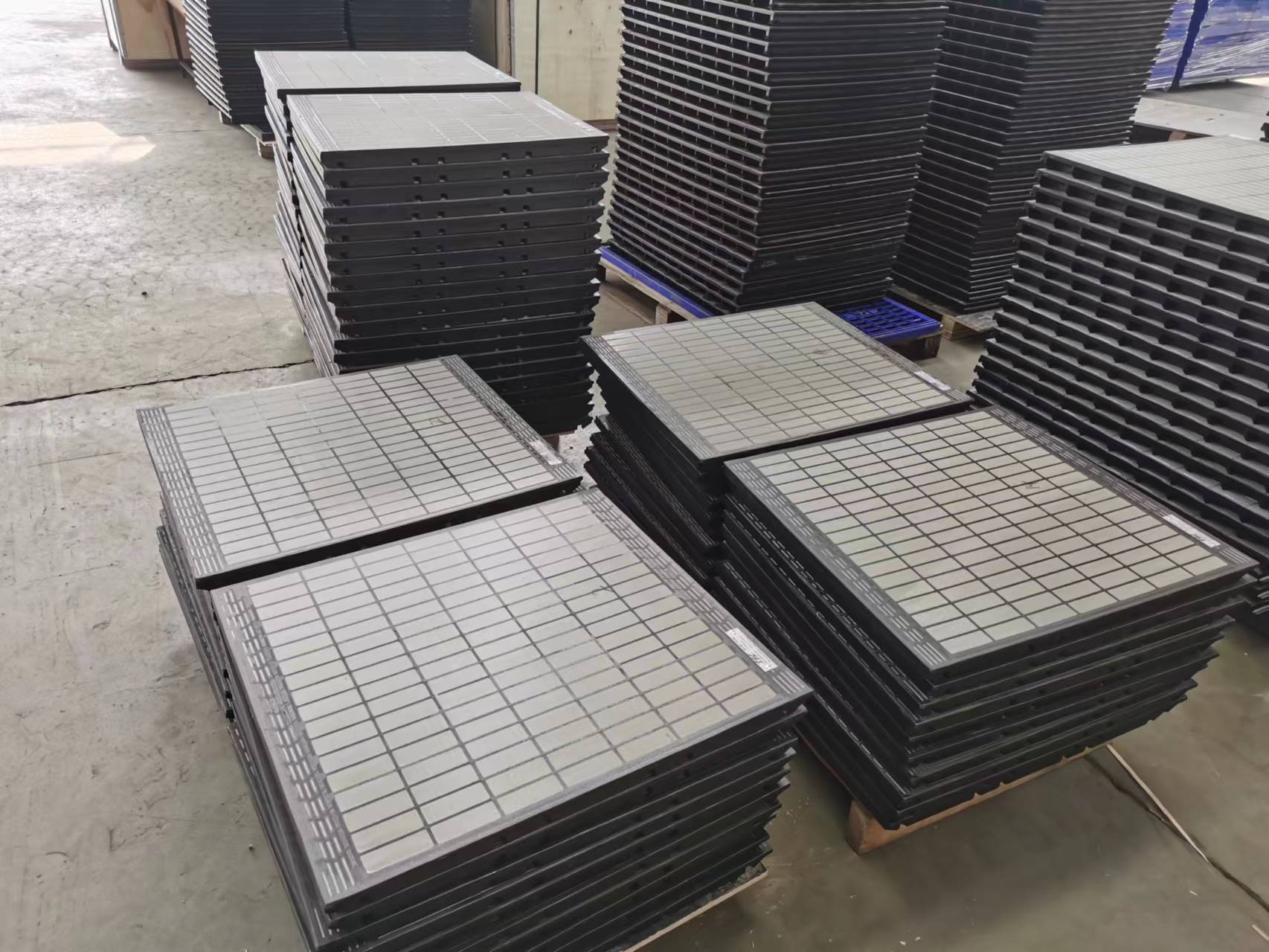

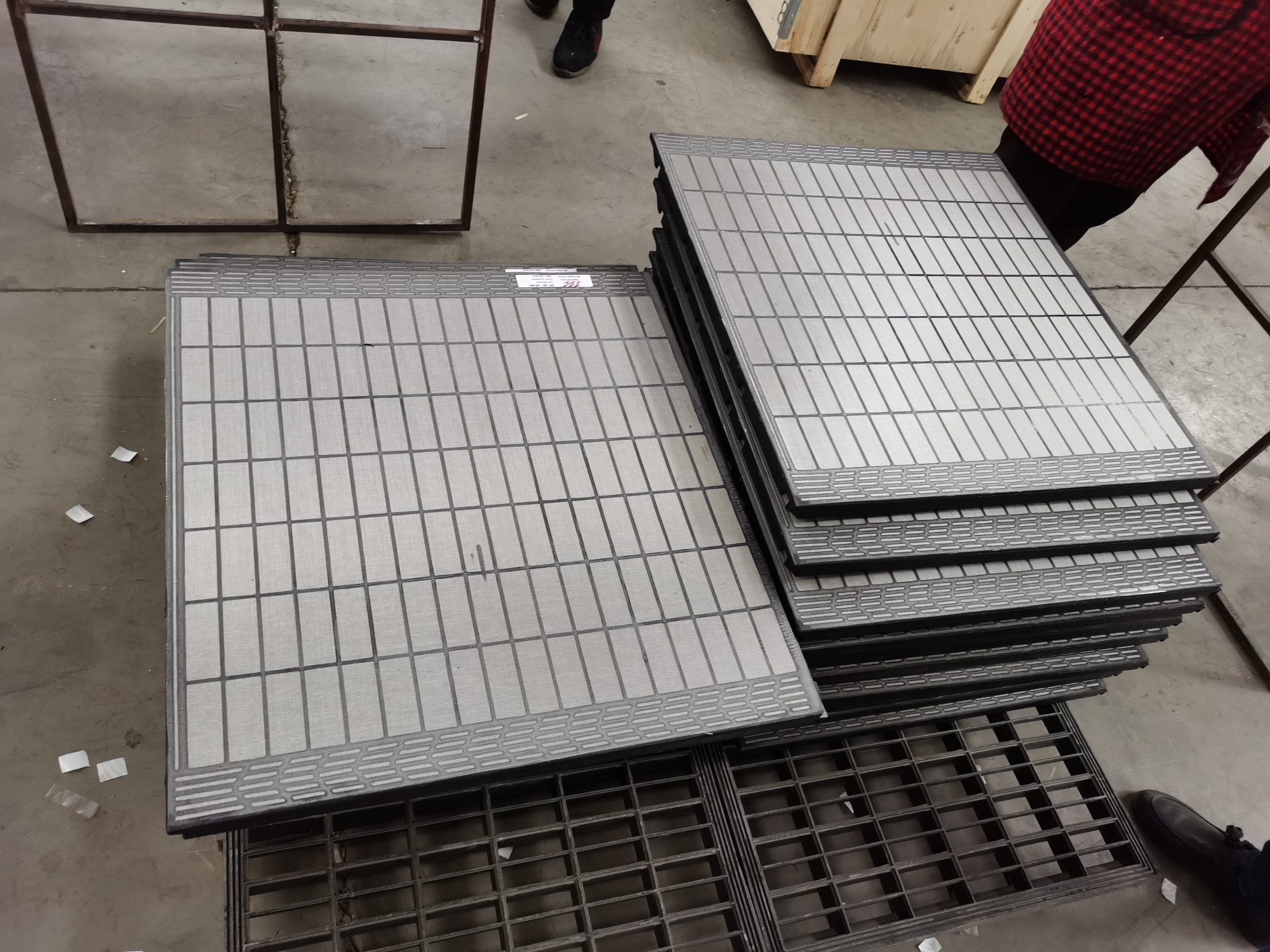

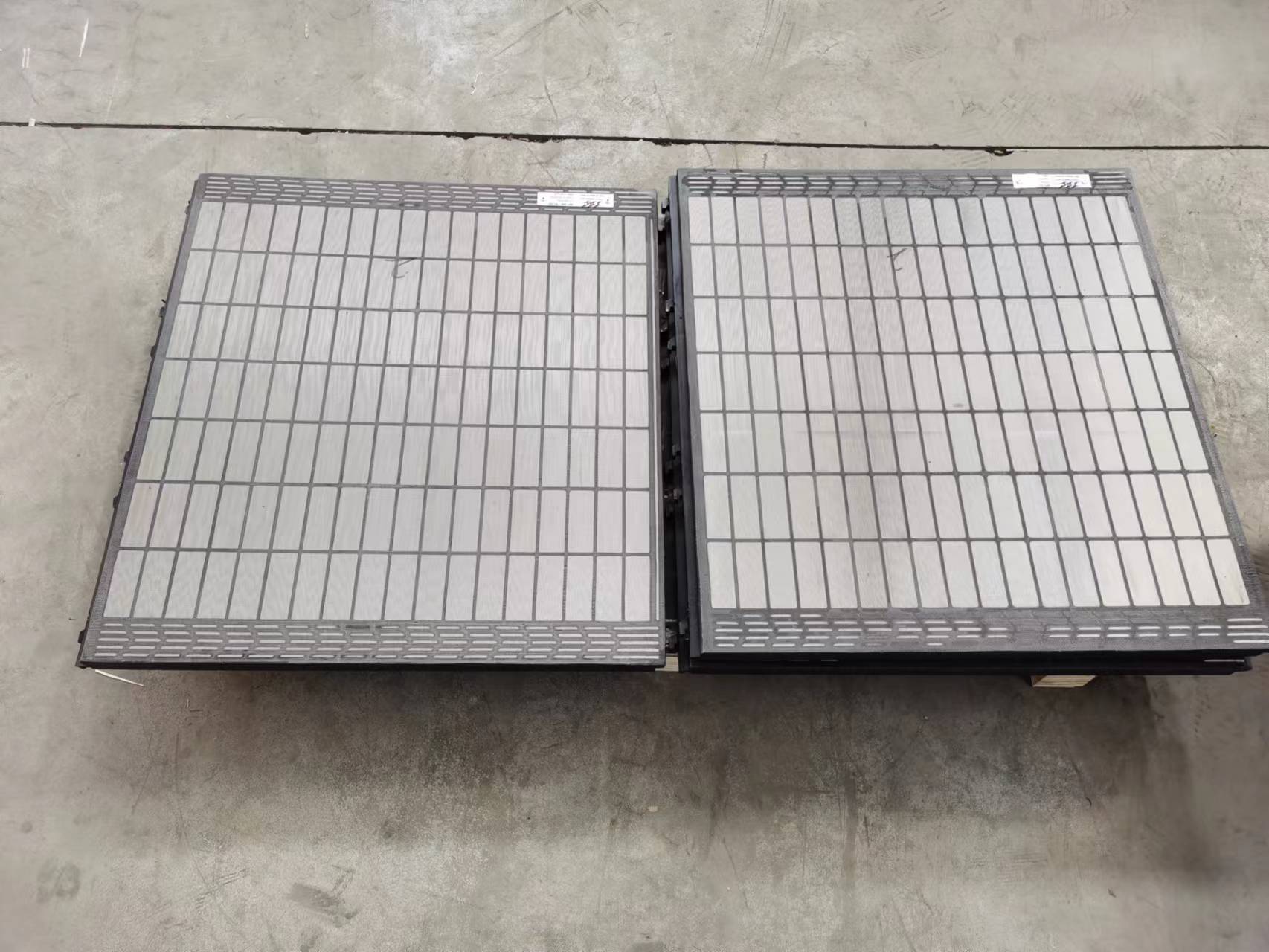

This shaker screen is the replacement shaker screen of SWACO MD screen, is a kind of composite frame screen, high strength plastic and glass composite material that is reinforced with high-tensile strength steel rods. They are popular with most users since they can be replaced quickly and clamped by wedge block, SWACO MD series screen are adaptable for MI-SWACO MD-2 and MD-3 series shaker and mud cleaner.
Main design data:
| MODEL: |
SWACO MD |
| MESH MATERIAL AND FRAME TYPE: |
SS316丨Composite |
| SIZE: |
630x650 ± 2 mm. |
| WEIGHT: |
7.0 ± 0.3 KG |
Main technical parameters
| Item |
Unit |
Values |
| Working temperature |
ºС |
-45 - + 150 |
| The PH of chemicals |
рН |
3 – 13 |
| Working area |
М2 |
0.4 |
